Fiber distribution boxes represent a critical component in modern telecommunications infrastructure, serving as the connection point between main fiber optic cables and individual subscribers. Whether you're a network technician, IT professional, or simply looking to understand fiber optic networks better, this guide will provide you with the essential knowledge for working with fiber termination box.

Understanding Fiber Distribution Boxes

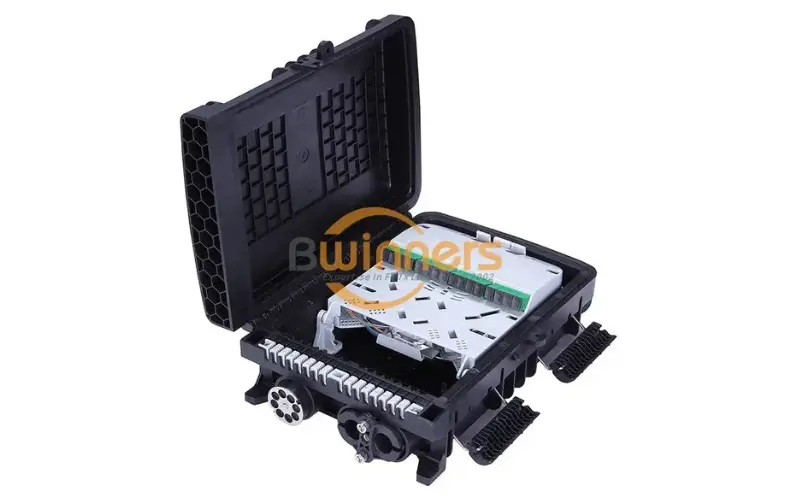

A fiber distribution box (FDB) functions as a central hub in fiber optic networks where the main cable is split into multiple individual fibers for distribution to end users. These boxes protect sensitive fiber connections from environmental factors while providing an organized framework for managing multiple connections.

Key components typically include:

  • An enclosure (plastic, metal, or reinforced material)
  • Cable entry ports
  • Splice trays or cassettes
  • Adapters for fiber connections
  • Cable management features

Types of Fiber Distribution Boxes

Selecting the appropriate distribution box depends on your specific application requirements:

Indoor vs. Outdoor Models

Indoor FDBs are designed for controlled environments like telecommunications closets, equipment rooms, and data centers. They typically feature:

  • Lightweight construction
  • Wall or rack mounting options
  • Less robust weather protection

Outdoor FDBs must withstand challenging environmental conditions and generally offer:

  • Weather-resistant or waterproof enclosures (IP65 or higher rating)
  • UV protection
  • Temperature resistance
  • Additional security features

Capacity Variations

Distribution boxes come in various sizes to accommodate different connection requirements:

  • Small (4-12 ports): Suitable for small office buildings or residential applications
  • Medium (16-48 ports): Ideal for multi-tenant buildings or campus environments
  • Large (72+ ports): Designed for high-density applications like telecommunications hubs

Installation Preparation

Recommended Reading: How to Use Fiber Distribution Box

Proper preparation ensures a successful installation:

Safety Considerations

  1. Always wear appropriate personal protective equipment:
    • Safety glasses to protect against fiber shards
    • Disposable gloves when handling fibers
    • Proper disposal container for fiber scraps
  2. Never look directly into fiber optic cables as the infrared light can damage your eyes

Essential Tools

Gather the necessary equipment before beginning:

  • Fiber optic stripper
  • Cleaver
  • Fusion splicer (if performing splicing)
  • Cleaning supplies (isopropyl alcohol, lint-free wipes)
  • Labeling system
  • Mounting hardware

Site Assessment

Evaluate the installation location for:

  • Adequate space for the box and service loops
  • Appropriate mounting surface
  • Proximity to power sources (if required)
  • Protection from potential physical damage

Step-by-Step Installation Process

1. Mounting the Distribution Box

  1. Position the box at a convenient height for access (typically 4-5 feet from the floor for indoor installations)
  2. Mark mounting holes using the box as a template
  3. Pre-drill holes if necessary
  4. Securely attach the box using appropriate fasteners for your mounting surface

2. Cable Entry and Preparation

  1. Remove the appropriate amount of outer jacket from the main cable
  2. Secure the cable to the box using strain relief components
  3. Route the cable through designated entry ports
  4. Prepare individual fibers according to manufacturer specifications

3. Splicing and Connection

  1. Carefully route fibers to the splice tray
  2. If using fusion splicing:
    • Strip, clean, and cleave fibers
    • Perform fusion splices following equipment instructions
    • Place protective sleeves over spliced sections
  3. For pre-terminated solutions:
    • Connect appropriate adapters
    • Route pigtails to connection points

4. Fiber Management

  1. Maintain proper bend radius (typically 30mm minimum) when routing fibers
  2. Secure fibers in designated management paths
  3. Label all connections clearly for future reference
  4. Store excess fiber appropriately without kinks or excessive bending

5. Testing

  1. Use an optical power meter to verify signal strength
  2. Test each connection point individually
  3. Document baseline readings for future comparison

Troubleshooting Common Issues

Signal Loss Problems

Excessive signal loss often results from:

  • Dirty connectors (clean with appropriate fiber cleaning tools)
  • Damaged fibers (may require re-termination)
  • Excessive bending (reroute fibers maintaining proper bend radius)
  • Poor splices (redo splice if necessary)

Physical Issues

Address these common physical problems promptly:

  • Condensation inside the box (check seals, consider desiccant)
  • Damaged enclosure (replace if protection compromised)
  • Loose mounting (reinforce mounting points)

Maintenance Best Practices

Regular maintenance extends the life of your fiber distribution system:

Scheduled Inspections

Conduct quarterly visual inspections:

  • Check for physical damage
  • Ensure proper door/cover closure
  • Verify intact cable entry seals
  • Confirm labels remain legible

Cleaning Procedures

When necessary:

  • Use compressed air to remove dust (outdoors only)
  • Clean accessible connectors with fiber optic cleaning tools
  • Wipe external surfaces with appropriate cleaners

Real-World Applications

Fiber distribution boxes serve critical functions across multiple industries:

Telecommunications

In telecommunications networks, FDBs provide the critical transition point between provider networks and customer premises. A regional provider might use a high-capacity outdoor distribution box to serve an entire neighborhood, with fibers routed to individual homes or businesses.

Data Centers

Modern data centers utilize fiber distribution boxes to manage the complex web of connections between servers, storage systems, and network equipment. The modular nature of these boxes allows for rapid reconfiguration as computing needs evolve.

Final Considerations

When working with fiber distribution boxes, remember:

  • Document all installations thoroughly
  • Follow manufacturer guidelines for your specific equipment
  • Consider future expansion needs when selecting box capacity
  • Maintain proper fiber management from the beginning

By following these guidelines, you'll be able to successfully install, maintain, and troubleshoot fiber distribution boxes across a wide range of applications, ensuring reliable fiber optic connectivity for your network.
